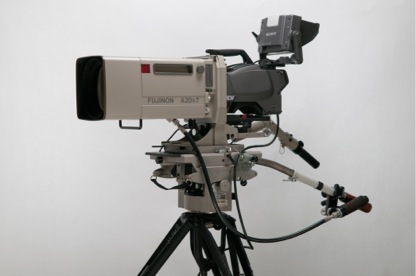

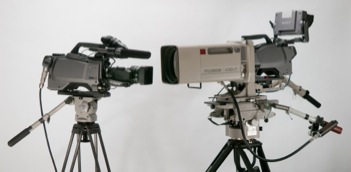

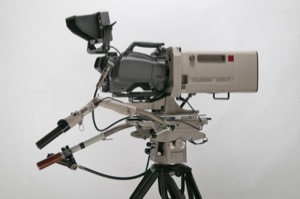

SONY HXC-100K w/ Fujinon Large Lense Adapter
The Sony HXC-100 camera supports versatile applications for HD with a high quality SD output.  It uses the latest 14-bit A/D conversion circuit as well as the superb 2/3-inch Power HAD FX CCDs to bring out high picture quality.  This 2.2-megapixel HD CCD based on Sony HAD sensor technology and the latest on-chip
lens structure offers a high sensitivity of F11 at 2000 lx. In addition to this performance, a wide variety of capturing modes including 525i, 625i, 1080/59.94 & 50i and 720/59.94 & 50P.
The HXC-100’s digital triax system can be integrated into conventional triax-based infrastructures, enabling an easy upgrade from existing systems.  This newly developed digital triax transmission system offers long cable runs of up to 1200 m (3937 feet)* via a 14.5 mm cable between the camera and the CCU.
*The maximum cable length depends on the camera system configuration, lens type, and the number of cable connections.
Power requirements: 180 V DC, 1.0 A (max.), 12V DC, 7 A(max.)
Operating temperature: -10 C to +45 C (14 F to +113 F)
Storage temperature: -20 C to +60 C ( -4 F to +140 F)
Mass:  4.4 kg (9 lb 11 oz)
Camera Pickup device: 3-chip 2/3-inch type, Progressive Scan Power HAD FX CCD
Effective picture elements:  (H x V) 1920 x 1080
Signal format:  1080/50i, 59.94i, 720/50P, 59.94P, 480/59.94i, 576/50i
Spectrum system: F1.4 prism system
Lens mount: Sony bayonet mount
Built-in filters: CC Electrical, ND 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND Sensitivity (at 2000 lx, 3200 K, 89.9% reflectance) F10 (59.94 Hz)/F11 (50 Hz) at 2000 lx (3200 K, 89.9% reflectance)
Signal-to-noise ratio (typical): HD : -59 dB (1080i)/SD : -65 dB at 59.94 Hz, -63dB at 50 Hz
Horizontal resolution HD: 1000 TV lines/SD : 900 TV lines
Shutter speed selection: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (59.94i mode), 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (50i mode)
Modulation depth HD:  45% at 27.5 MHz(1080i)
SD:  90% at 5 MHz
Input/output connectors
Audio input (CH1, CH2) XLR 3-pin, female (1 each)
For MIC: -60 dBu (may be selected to -20 dBu by menu
or HXCU-100 operations), balanced
For LINE: 0 dBu, balanced Mic 1 input XLR 3-pin, female (1)
Return control input:  6-pin (1)
Prompter output/Genlock input/Return input:
BNC type (1), 1 Vp-p, 75 ohms
DC input:  XLR 4-pin (1), 10.5 to 17 VDC
DC output:  4-pin (1), 10.5 to 17 V DC,0.5 A (max.)
Test output:  BNC type (1)
SDI output: BNC type (1)
Earphone output:  Stereo minijack (1)
CCU:  Triax connector (1)
Intercom:  XLR 5-pin, female (1)
Remote:  8-pin (1)
Lens:  12-pin (1)
Viewfinder:  20-pin (1)

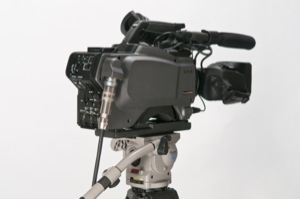

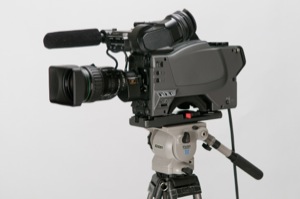

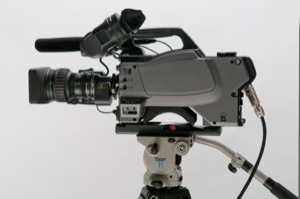

Sony HXC-100 SD/HD Triax Video Camera
Technical Specifications
