UNIT 2 Layout and Equipment

UNIT 2

is Our Large Production truck

Production 2 Tier Production Area w/seating for 6 48 - input Evertz Multiviewer at Front Prod Desk across 15 LED monitors Video Sony MVS-6530 HD Switcher: 48 input, 3 ME, 2 Internal 2.5 D DVE per M/E, 8 Ch Ram Recorder/Still Store, 4 keyers on 2 M/Es and 8 on the DSK, 10 Aux outs w/ Frame conversion. Cameras Sony HXC 100K HD Cameras (Studio & HH) 3 - Fujinon 20X Box Lenses 1 - Fujinon 55X Box Lens
1 - Fujinon 70X Box Lens 1 -Canon 19X ENG Lens 1 - Canon 16X HD ENG Lens
1 - Canon Wide HD ENG Lens 6 - Quickset Tripods 3 - Vinten ENG Tripods Recording 1 - 4x2 Grass Valley K2 Summit/Dyno Record and Player Slo-Mo.
1 - 2x1 grass Valley K2 Solo/Dyno Record and Player Slo-Mo. 4 - AJA KiPros
4 - Sound Devices Pix 260i s (32ch Dante) Audio Yamaha CL-5 72x48 audio board 10 - Audio DA's 1 - 360 Systems Digicart 1 - CD Player 4 - Daltech Announce Boxes
2 - Studio-tech Dante Announce Boxes 6 - Audio Technica Shotguns 6 - Hand Mics, RE-50, EV635, SM58 6 - Shure Sportscaster Headsets

Routing 10 - Aux buses off Sony MVS
AJA Kumo 32x32x2 sd/hd-sdi Routers w/5 CPs Graphics Chyron HD-SDI Duet LEX Communications ADAM CS 48x Matrix (KP12s & KP32s)
4 - RTS TIF 2000a 6 - RTS Wet Channels
RTS 6 channel IFB system
RTS 612 SAP Panel 10 - BP 325 Intercom Beltpacks 6 - IFB Beltpacks 4 - Motorola Radios 4 - Line telephone Merlin system Terminal 6 - AJA FS1 Frame Syncs Evertz frames with various DA & convertor cards Power 240V single phase 100 amps 2 - 5ton AC units Overall Dimensions 16'x40' Chevy T5600 Truck(Full Production Footprint) 8'x19' "B" unit trailer 12'6" Height

Bay Area Mobile Production

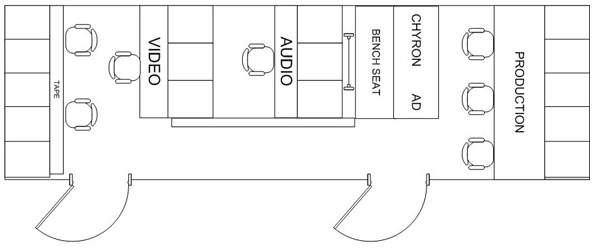

The Truck has Four work areas:

Production: 2 Bench work areas for the Director, TD, Chyron Op, Bug Box op, Producer, and Client.

Audio: Yamaha Cl-5 mixer and all the support equipment needed with a full view of the production area.

Record area and Video Shading: accommodates various recording media, including record and playback and Video Shading.
